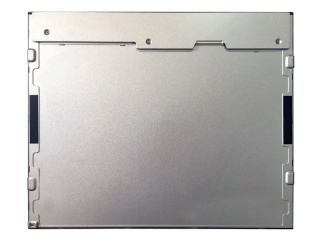

| Part Number | G190ETN01.8 |
| Mark | AUO |
| Gréisst | 19.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 50K hours , No Driver |
| Interface | |
| Fabrikant beschwéiert | AUO |
| Modell Numm | G190ETN01.8 |
| Écran Gréisst | 19.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×1024 (SXGA) 86PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 376.32 × 301.056 (H×V) |
| Kontur (mm) | 396 × 324 (H×V×D) |
| Bezel Beräich (mm) | 379.72 × 304.46 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 800 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10) |
| Äntwert | 7/3 (Typ.)(Tr/Td) ms |
| gutt Vue op | - |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 16.7M 70% NTSC |
| mass | 1.80Kgs (Typ.) |
| benotzt fir | Industrial Outdoor High Brightness |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -30 ~ 70 °C Operating Temp.: -30 ~ 70 °C |
