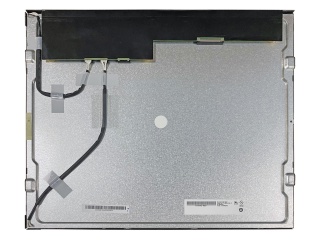

| Part Number | G190EAN01.6 |
| Mark | AUO |
| Gréisst | 19.0 |
| Applikatioun | Industrial Medical I |
| Opléisung | 1280×1024 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AUO |
| Modell | G190EAN01.6 |
| diagonal Gréisst | 19.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×1024 [SXGA] 86PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 376.32(H)×301.056(V) mm |
| kontur dim. | 396(H)×324(V) ×15.8(D) mm |
| bezel Beräich | 380.32(H)×305.06(V) mm |
| Behandlung | Antiglare |
| luminance | 1000 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 13/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Liichtquell | WLED , 50K hours , With LED Driver |
| Gewiicht | 1.70±0.15Kgs |
| entworf fir | Industrial Medical Imaging Outdoor High Brightness |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (2 ch, 8-bit) |
| Stroumversuergung | 5.0V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| G190EAN01.0 | AUO | 19.0 | 1280×1024 |
| G190EG01 V0 | AUO | 19.0 | 1280×1024 |
| G190EG01 V1 | AUO | 19.0 | 1280×1024 |
| G190EG01 V2 | AUO | 19.0 | 1280×1024 |
| G190EG02 V0 | AUO | 19.0 | 1280×1024 |
| G190EG02 V1 | AUO | 19.0 | 1280×1024 |
| G190ETN01.0 | AUO | 19.0 | 1280×1024 |
| G190ETN01.2 | AUO | 19.0 | 1280×1024 |
| G190ETN01.4 | AUO | 19.0 | 1280×1024 |
| G190ETN02.0 | AUO | 19.0 | 1280×1024 |
