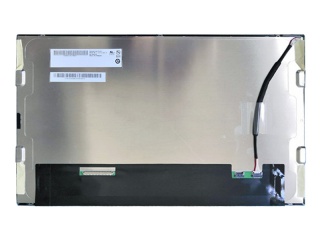

| Part Number | G156HAN02.302 |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Industrial Medical I |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AUO |
| diagonal Gréisst | 15.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| aktiv Beräich | 344.16(H)×193.59(V) mm |
| bezel Beräich | 347.06(H)×196.49(V) mm |
| luminance | 500 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 99% sRGB |
| Gewiicht | 600/660g (Typ./Max.) |
| Frame Taux | 60Hz |
| Interface Typ | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| Modell | G156HAN02.302 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 363.8(H)×215.9(V) ×9.3(D) mm |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Liichtquell | WLED , 50K hours , With LED Driver |
| entworf fir | Industrial Medical Imaging |
| Touch Panel | Without |
