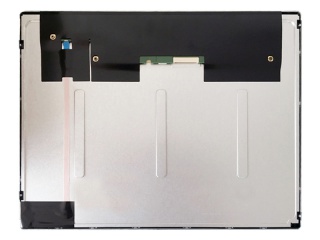

| Part Number | G150XNE-L02 |
| Mark | Innolux |
| Gréisst | 15.0 |
| Applikatioun | Industrial Gaming |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 2500:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | Innolux |
| Modell | G150XNE-L02 |
| diagonal Gréisst | 15.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×768 [XGA] 85PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 304.128(H)×228.096(V) mm |
| kontur dim. | 326.5(H)×253.5(V) ×9.6(D) mm |
| bezel Beräich | 307.4(H)×231.3(V) mm |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 2500:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 13/5 (Typ.)(Tr/Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| Betribssystemer Modus | NPVA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 262K/16.2M 72% NTSC |
| Liichtquell | WLED , 70K hours , With LED Driver |
| Gewiicht | 0.97/1.00Kgs (Typ./Max.) |
| entworf fir | Industrial Gaming |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 70 °C |
