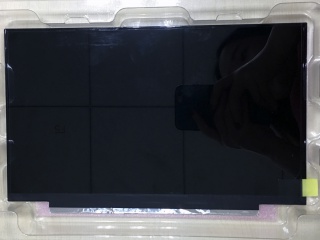

| Part Number | G116HAN01.0 |
| Mark | AUO |
| Gréisst | 11.6 |
| Applikatioun | Industrial |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | AUO |
| diagonal Gréisst | 11.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 190PPI |
| aktiv Beräich | 256.32(H)×144.18(V) mm |
| bezel Beräich | - |
| luminance | 300 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 52% NTSC |
| Gewiicht | 200g (Max.) |
| Frame Taux | 60Hz |
| Interface Typ | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | G116HAN01.0 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 268(H)×168.5(V) ×3(D) mm |
| Behandlung | Hard coating (3H) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Liichtquell | WLED , 15K hours , With LED Driver |
| entworf fir | Industrial |
| Touch Panel | Without |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| B116XAT03.1 | AUO | 11.6 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B116XW03 V1 | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| LP116WH1-TLP1 | LG Display | 11.6 | 1366×768 |
| M116NWR1 R1 | IVO | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
