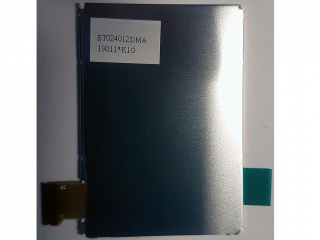

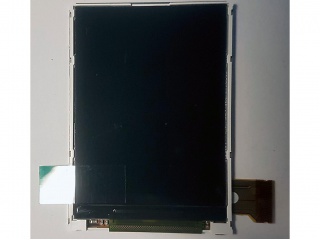

| Part Number | ET024012DMA |
| Mark | EDT |
| Gréisst | 2.4 |
| Applikatioun | Handheld & PDA |
| Opléisung | 240×320 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 820:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | 8/9/16/18-bit |
| Mark | EDT |
| Modell | ET024012DMA |
| diagonal Gréisst | 2.4 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 240(RGB)×320 [QVGA] 166PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 36.72(H)×48.96(V) mm |
| kontur dim. | 42.72(H)×60.4(V) mm |
| bezel Beräich | 37.72(H)×49.96(V) mm |
| Behandlung | - |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 820:1 (Typ.) (TM) |
| Vue Richtung | - |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/70/70 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 59% NTSC |
| Liichtquell | WLED [4S1P] , 10K hours , W/O Driver |
| Gewiicht | - |
| entworf fir | Handheld & PDA |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | 8/9/16/18-bit 8080 parallel , 35 pins FPC |
| Stroumversuergung | 3.0/3.0V (Typ.)(VCI/IOVCC) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
