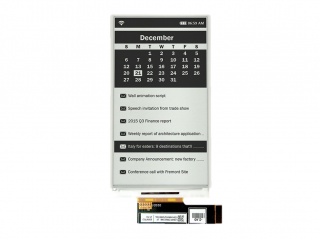

| Part Number | ED047TC2 |
| Mark | E Ink |
| Gréisst | 4.7 |
| Applikatioun | Mobile Phone |
| Opléisung | 540×960 |
| Zesummesetzung | EPD, EPD |
| Hellegkeet | |
| CR | |
| Faarwen | Grayscale |
| Géigeliicht | No |
| Interface | Parallel |
| Mark | E Ink |
| Modell | ED047TC2 |
| diagonal Gréisst | 4.7 inch |
| Typ | EPD, EPD |
| Pixel Format | 540×960 [qHD] 235PPI |
| Configuratioun | Rectangle |
| aktiv Beräich | 58.32(H)×103.68(V) mm |
| kontur dim. | 62.5(H)×113.9(V) mm |
| bezel Beräich | - |
| Behandlung | Hard coating |
| Vue Richtung | - |
| Äntwert Zäit | 450 |
| Vue Wénkel | - |
| Betribssystemer Modus | Reflective |
| Ënnerstëtzung Faarf | Grayscale |
| Liichtquell | No B/L |
| Gewiicht | 12.0g |
| entworf fir | Mobile Phone |
| Frame Taux | - |
| Touch Panel | Without |
| Interface Typ | Parallel Data (1ch, 8-bit) Connector |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 70 °C |
| A047FW01 V0 | AUO | 4.7 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| H466TAN01.0 | AUO | 4.7 | 720×1280 |
| H466TAN01.1 | AUO | 4.7 | 720×1280 |
| KCG047QV1AA-A21 | Kyocera | 4.7 | 320×240 |
| LH467WX1-SD01 | LG Display | 4.7 | 768×1280 |
| LM32K10 | SHARP | 4.7 | 320×240 |
| LS047T1SC02 | SHARP | 4.7 | 1080×1920 |
| PG320240C | Other | 4.7 | 320×240 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
