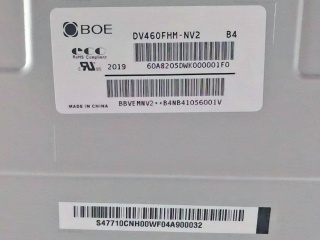

| Part Number | DV460FHM-NV2 |
| Mark | BOE |
| Gréisst | 46 |
| Applikatioun | Video Wall |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 50K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | BOE |
| Écran Gréisst | 46 inch |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 47PPI |
| aktiv Beräich (mm) | 1018.08 × 572.67 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 500 cd/m² (Typ.) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 16.7M 95% sRGB |
| splicing seam | 0.9 mm (active to active seam) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Spannungsversuergung | 12.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | DV460FHM-NV2 |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 1018.96 × 573.55 × 58.3 (H×V×D) |
| Behandlung | Antiglare (Haze 25%), Hard coating (2H) |
| Kontrast Verhältnis | 1200 : 1 (Typ.) (TM) |
| Äntwert | 8 (Typ.)(G to G) ms |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| benotzt fir | Video Wall |
| touchscreen | Without |
| HV460WUC-200 | BOE | 46 | 1920×1080 |
| LSC460HW01 | Samsung | 46 | 1920×1080 |
| LTA460HM03 | Samsung | 46 | 1920×1080 |
| LTA460HM06 | Samsung | 46 | 1920×1080 |
| LTA460HQ23 | Samsung | 46 | 1920×1080 |
| LTF460HF08 | Samsung | 46 | 1920×1080 |
| T460HW03 VF | AUO | 46 | 1920×1080 |
| T460HW04 V0 | AUO | 46 | 1920×1080 |
| T460HW08 V0 | AUO | 46 | 1920×1080 |
| V460H1-LS2 | Innolux | 46 | 1920×1080 |
