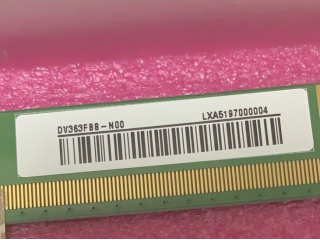

| Part Number | DV363FBB-N00 |
| Mark | BOE |
| Gréisst | 36.3 |
| Applikatioun | Digital Signage |
| Opléisung | 1216×2160 |
| Zesummesetzung | a-Si TFT-LCD, CELL |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | LVDS |
| Panel Mark | BOE |
| Panel Modell | DV363FBB-N00 |
| Panel Gréisst | 36.3" |
| Panel Typ | a-Si TFT-LCD, CELL |
| Resolutioun | 1216(RGB)×2160, 68PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 452.352(W)×803.52(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 464.352(W)×809.62(H) mm |
| Uewerfläch | Antiglare (Haze 1%) |
| Hellegkeet | 0 cd/m² |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Display Modus | ADS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 5.1% (Typ.)(with Polarizer) |
| weisen Faarwen | 16.7M 72% NTSC |
| Lampe Typ | No B/L |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Chauffeur ic | COGBuilt-in 4 source chips |
| Panel Gewiicht | 1.20Kgs (Typ.) |
| Applikatioun | Digital Signage |
| Signal Interface | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Input Volt | 12.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
