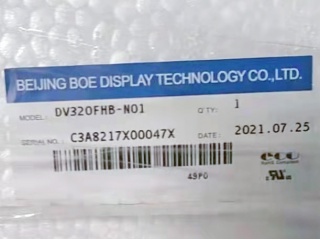

| Part Number | DV320FHB-N01 |
| Mark | BOE |
| Gréisst | 32.0 |
| Applikatioun | Digital Signage |
| Opléisung | 1920×1080 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Fabrikant beschwéiert | BOE |
| Modell Numm | DV320FHB-N01 |
| Écran Gréisst | 32.0 inch |
| Écran Typ | CELL , a-Si TFT-LCD |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 69PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 698.4 × 392.85 (H×V) |
| Kontur (mm) | 708.4 × 405.4 × 1.35 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare (Haze 25%), Hard coating (3H) |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 1200 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Äntwert | 8 (Typ.)(G to G) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADSDS, Normally Black, Transmissive |
| Glas deck | 0.50+0.50 mm |
| transmissivitéit | 5.0% (Typ.)(with Polarizer) |
| Faarfdéift | 16.7M 72% NTSC |
| mass | 850g (Typ.) |
| benotzt fir | Digital Signage |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Chauffer ic Lëscht | Built-in COF 6 source chips |
| Signal Typ | LVDS (2 ch, 8-bit) , 51 pins Connector |
| Spannungsversuergung | 12.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
