| Part Number | COM57T5N07RSS |
| Mark | Ortustech |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 640×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | Ortustech |
| diagonal Gréisst | 5.7 inch |
| Pixel Format | 640(RGB)×480 [VGA] 141PPI |
| aktiv Beräich | 115.2(H)×86.4(V) mm |
| bezel Beräich | - |
| luminance | 500 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K 50% NTSC |
| Gewiicht | - |
| Frame Taux | 60Hz |
| Interface Typ | Parallel RGB (1 ch, 6-bit) Connector |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Modell | COM57T5N07RSS |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |

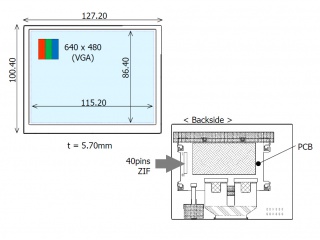

| kontur dim. | 127.2(H)×100.4(V) mm |
| Behandlung | Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | - |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Liichtquell | WLED [5S3P] , 50K hours , With LED Driver |
| entworf fir | Industrial |
| Touch Panel | Without |
