| Part Number | COM50H5N03ULC |
| Mark | Ortustech |
| Gréisst | 5.0 |
| Applikatioun | Handheld & PDA |
| Opléisung | 720×1280 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:13:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S1P WLED , 50K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | Ortustech |
| Modell Numm | COM50H5N03ULC 1 Compatible |
| Écran Gréisst | 5.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 720(RGB)×1280 (WXGA) 296PPI |
| Arrangement | RGB Vertical Stripe |

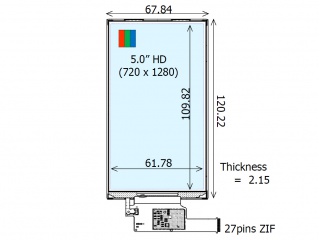

| aktiv Beräich (mm) | 61.776 × 109.824 (H×V) |
| Kontur (mm) | 67.84 × 120.22 × 2.4 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating (2H) |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Äntwert | TBD ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | VA, Normally Black, Transflective |
| Faarfdéift | 16.7M 50% NTSC |
| mass | 34.0g (Typ.) |
| benotzt fir | Handheld & PDA |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | MIPI (4 data lanes) , 27 pins FPC |
| Spannungsversuergung | 1.9/2.9V (Typ.)(VCCIO/VDD) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
