| Part Number | COM43H4N98UTC |
| Mark | Ortustech |
| Gréisst | 4.3 |
| Applikatioun | Handheld & PDA |
| Opléisung | 480×800 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | 7S1P WLED , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | Ortustech |
| Modell Numm | COM43H4N98UTC |
| Écran Gréisst | 4.3 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 480(RGB)×800 (WVGA) 218PPI |
| Arrangement | RGB Vertical Stripe |

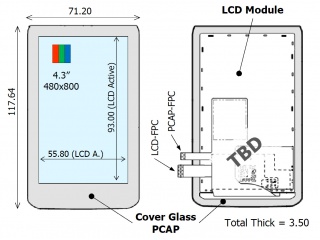

| aktiv Beräich (mm) | 55.8 × 93 (H×V) |
| Kontur (mm) | 71.2 × 117.64 (H×V×D) |
| luminance | 325 cd/m² (Typ.) |
| Kontrast Verhältnis | 600 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Äntwert | 40/60 (Max.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | VA, Normally Black, Transflective |
| Faarfdéift | 16.7M 50% NTSC |
| mass | - |
| benotzt fir | Handheld & PDA |
| Erfrëschungsrate | 60Hz |
| touchscreen | PCAP |
| Signal Typ | MIPI (2 data lanes) FPC |
| Spannungsversuergung | 3.3/1.8V (Typ.)(VDD/VCCIO) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
