| Part Number | COM24H2P71ULC |
| Mark | Ortustech |
| Gréisst | 2.4 |
| Applikatioun | Handheld & PDA |
| Opléisung | 240×320 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 800:12:1 |
| Faarwen | 262K |
| Géigeliicht | 2S1P |
| Interface | Parallel |
| Panel Mark | Ortustech |
| Panel Modell | COM24H2P71ULC |
| Panel Gréisst | 2.4" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 240(RGB)×320, QVGA, 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 36(W)×48(H) mm |
| bezel Ouverture | - |

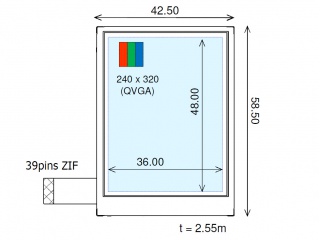

| Kontur Gréisst | 42.5(W)×58.5(H) ×5.55(D) mm |
| Uewerfläch | Hard coating (3H) |
| Hellegkeet | 270 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Display Modus | VA, Normally Black, Transflective |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 50 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K 50% NTSC |
| Lampe Typ | 2S1P WLED , 50K hours , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 13.5g (Typ.) |
| Applikatioun | Handheld & PDA |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| Input Volt | 3.3/3.3V (Typ.)(VCCIO/VDD) |
| Ëmwelt | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| 24QVF1H | SII | 2.4 | 240×320 |
| A024CN02 VL | AUO | 2.4 | 480×234 |
| C0240QGLG-T | CMEL | 2.4 | 240×320 |
| COM24H2N62XLC | ORTUSTECH | 2.4 | 240×320 |
| LS024J3LX01 | SHARP | 2.4 | 320×480 |
| LS024Q3UX12(G) | SHARP | 2.4 | 320×240 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| RGS24128064YW004 | RiTdisplay | 2.4 | 128×64 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TM024HDH36 | Tianma | 2.4 | 240×320 |
