| Part Number | COM121T9M14CSS |
| Mark | Ortustech |
| Gréisst | 12.1 |
| Applikatioun | Industrial |
| Opléisung | 800×600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | Ortustech |
| Modell | COM121T9M14CSS |
| diagonal Gréisst | 12.1 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 82PPI |
| Configuratioun | RGB Vertical Stripe |

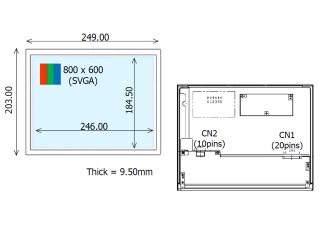

| aktiv Beräich | 246(H)×184.5(V) mm |
| kontur dim. | 260.5(H)×203(V) ×10(D) mm |
| luminance | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 40 (Max.)(Tr+Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| Betribssystemer Modus | FFS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 262K/16.7M 48% NTSC |
| Liichtquell | WLED , 70K hours , With LED Driver |
| Gewiicht | 500g (Typ.) |
| entworf fir | Industrial |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
