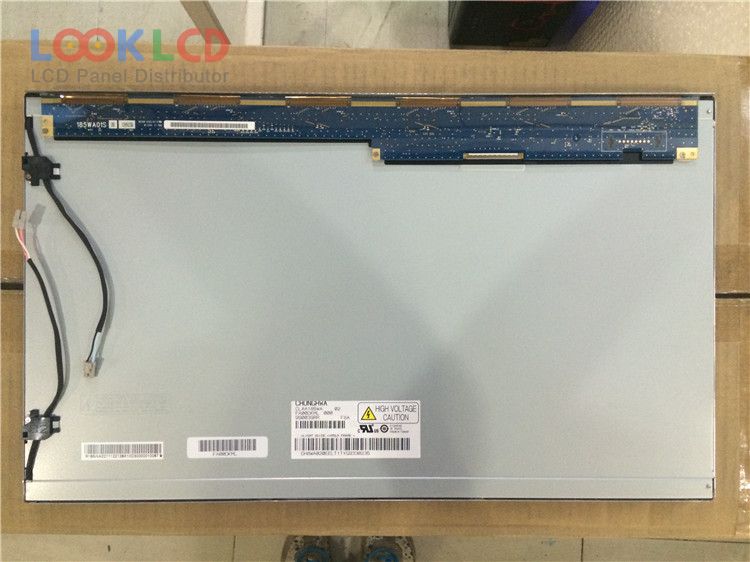

| Part Number | CLAA185WA02 |
| Mark | CPT |
| Gréisst | 18.5 |
| Applikatioun | DMPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CPT |
| Panel Modell | CLAA185WA02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 18.5 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 409.8×230.4 mm |
| skizzéieren | 430.37×254.6×16.5 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 5 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| CLAA102NA0ACG | CPT | 10.2 | 1024×600 |
| CLAA133UA03 | CPT | 13.3 | 1600×900 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| CLAA141WB05A | CPT | 14.1 | 1280×800 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA154WB05AN | CPT | 15.4 | 1280×800 |
| CLAA154WP05A | CPT | 15.4 | 1440×900 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| CLAA185WA04 | CPT | 18.5 | 1366×768 |
| LM170E01-TLA1 | LG Display | 17.0 | 1280×1024 |
| LM185WH2-TLD1 | LG Display | 18.5 | 1366×768 |
| LM270WF7-SSB1 | LG Display | 27.0 | 1920×1080 |
| LTM213U4-L01 | Samsung | 21.3 | 1600×1200 |
| LTM215HT03 | Samsung | 21.5 | 1920×1080 |
| LTM340YP01 | Samsung | 34 | 3440×1440 |
| M170ETN01.1 | AUO | 17.0 | 1280×1024 |
| M201P1-L01 | Innolux | 20.1 | 1400×1050 |
| M215HTN01.0 | AUO | 21.5 | 1920×1080 |
| MT190AW02 V.A | Innolux | 19.0 | 1440×900 |
