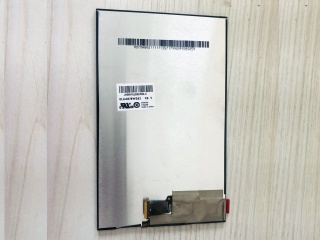

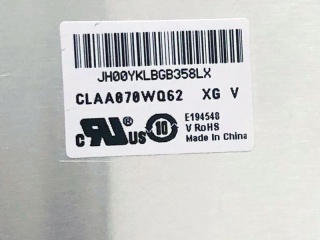

| Part Number | CLAA070WQ62 XG |
| Mark | CPT |
| Gréisst | 7.0 |
| Applikatioun | Pad & Tablet |
| Opléisung | 800×1280 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | CPT |
| diagonal Gréisst | 7.0 inch |
| Pixel Format | 800(RGB)×1280 [WXGA] 215PPI |
| aktiv Beräich | 94.2(H)×150.72(V) mm |
| bezel Beräich | - |
| luminance | 350 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 70% NTSC |
| Gewiicht | - |
| Frame Taux | 60Hz |
| Interface Typ | MIPI (4 data lanes) , 39 pins FPC |
| Stroumversuergung | 1.8/3.3/15/-10V (Typ.)(VDDI/VCI/VGH/VGL) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Modell | CLAA070WQ62 XG |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 99.6(H)×161.62(V) ×4.05(D) mm |
| Behandlung | Hard coating |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Betribssystemer Modus | FFS, Normally Black, Transmissive |
| Liichtquell | WLED [3S6P] , 15K hours , W/O Driver |
| entworf fir | Pad & Tablet |
| Touch Panel | On-Cell Touch |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070NC0BCT | CPT | 7.0 | 1024×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ05CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
