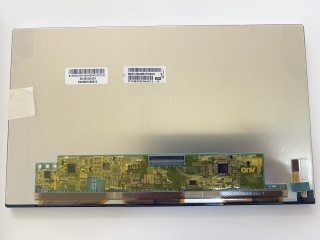

| Part Number | C090EAN01.0 |
| Mark | AUO |
| Gréisst | 9.0 |
| Applikatioun | Automotive Display |
| Opléisung | 1280×720 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AUO |
| Modell | C090EAN01.0 |
| diagonal Gréisst | 9.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×720 [WXGA] 163PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 198.72(H)×111.78(V) mm |
| kontur dim. | - |
| luminance | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 15/15 (Max.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 70% NTSC |
| Liichtquell | WLED |
| Gewiicht | - |
| entworf fir | Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 8-bit) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| A090PAN01.0 | AUO | 9.0 | 900×1440 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| HSD090IDW1-A00 | HannStar | 9.0 | 800×480 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
