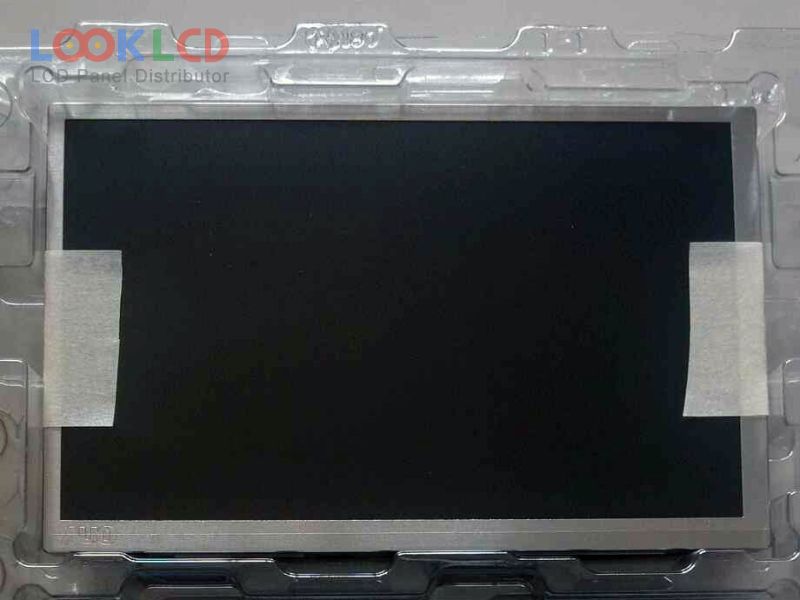

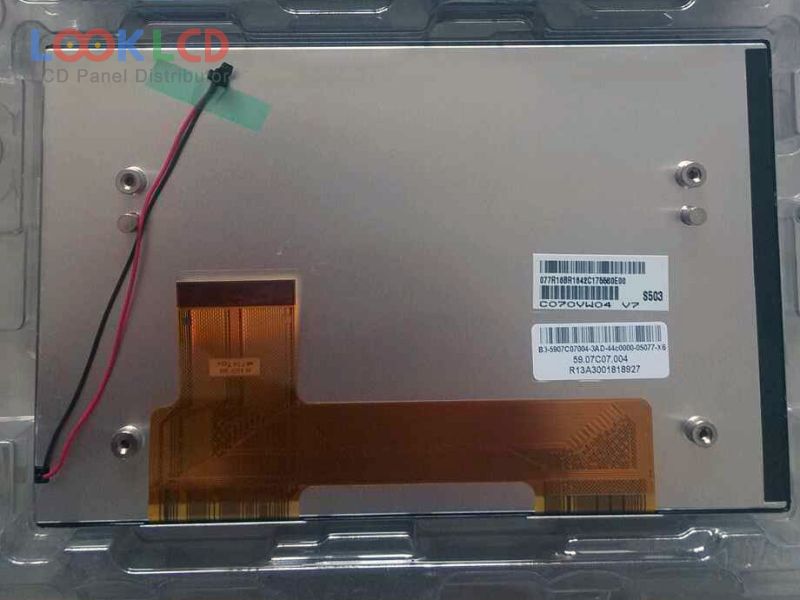

| Part Number | C070VW04 V7 |
| Mark | AUO |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 1500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | AUO |
| Panel Modell | C070VW04 V7 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | AMVA, Normally Black, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 164.55×105.01×12.05 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 10/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4S3PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| Input Volt | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Applikatioun | CNS |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VW01 V0 | AUO | 7.0 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| C070VW04 VB | AUO | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| LA092WV1-SD01 | LG Display | 9.2 | 800×480 |
| LB040Q02-TD01 | LG Display | 4.0 | 320×240 |
| LB070WV3-SD03 | LG Display | 7.0 | 800×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ5AW136R | SHARP | 5.0 | 320×234 |
| NL4827HC19-05A | NLT | 4.3 | 480×272 |
| PM100WX2 | E Ink | 10.0 | 800×480 |
