| Part Number | BH156EA2S |
| Mark | No Brand |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | Oxide TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | No Brand |
| diagonal Gréisst | 15.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| aktiv Beräich | 344.16(H)×193.59(V) mm |
| bezel Beräich | - |
| luminance | 250 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K 45% NTSC |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Frame Taux | 60Hz |

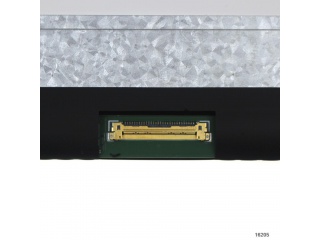

| Interface Typ | eDP (2 Lanes) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | BH156EA2S |
| Typ | Oxide TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 359.5(H)×223.8(V) ×3.2(D) mm |
| Behandlung | Antiglare |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Tf) |
| Betribssystemer Modus | FFS, Normally Black, Transmissive |
| Liichtquell | WLED [4S10P] , 10K hours , With LED Driver |
| entworf fir | Laptop |
| Touch Panel | Without |
