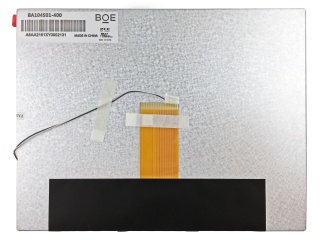

| Part Number | BA104S01-400 |
| Mark | BOE |
| Gréisst | 10.4 |
| Applikatioun | Digital Photo Frame |
| Opléisung | 800×600 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 3S12P |
| Interface | Parallel |
| Panel Mark | BOE |
| Panel Gréisst | 10.4" |
| Resolutioun | 800(RGB)×600, SVGA, 96PPI |
| Affichage Beräich | 211.2(W)×158.4(H) mm |
| Kontur Gréisst | 228.4(W)×175.4(H) mm |
| Hellegkeet | 350 cd/m² (Typ.) |
| Vue Wénkel | 80/80/65/75 (Typ.)(CR≥10) |
| beschte Vue op | - |
| weisen Faarwen | 262K/16.7M 55% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | TBD |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| Input Volt | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Panel Modell | BA104S01-400 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 214.4(W)×161.6(H) mm |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Lampe Typ | 3S12P WLED , 20K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Digital Photo Frame Home Appliance |
