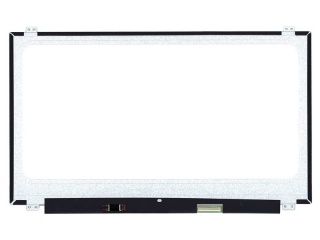

| Part Number | B156XTN07.0 HWAA |
| Mark | AUO |
| Gréisst | 15.6 |
| Applikatioun | Laptop |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | |
| Fabrikant beschwéiert | AUO |
| Modell Numm | B156XTN07.0 HWAA (AUO70EC) |
| Écran Gréisst | 15.6 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1366(RGB)×768 (WXGA) 100PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 344.232 × 193.536 (H×V) |
| Kontur (mm) | 359.5 × 223.8 × 3.4 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Hard coating |
| luminance | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10) |
| Äntwert | 8 (Typ.)(Tr+Td) ms |
| gutt Vue op | 6 o'clock |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K 45% NTSC |
| kontur Form | Slim (PCBA Flat, T≤3.2mm) |
| benotzt fir | Laptop |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
