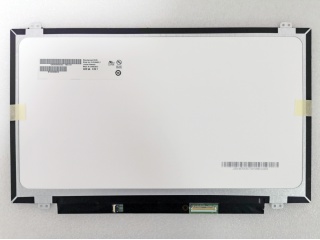

| Part Number | B140HAN02.2 |
| Mark | AUO |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | AUO |
| Écran Gréisst | 14.0 inch |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 157PPI |
| aktiv Beräich (mm) | 309.14 × 173.89 (H×V) |
| Bezel Beräich (mm) | - |
| luminance | 220 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 262K 45% NTSC |
| kontur Form | Slim (PCBA Flat, T≤3.2mm) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | B140HAN02.2 (AUO223D) |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 320.4 × 205.1 × 3.2 (H×V×D) |
| Behandlung | Glare (Haze 0%) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| Aarbecht Modus | AHVA, Normally Black, Transmissive |
| benotzt fir | Laptop |
| touchscreen | Without |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140HAN01.1 | AUO | 14.0 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
