| Part Number | B133XW04 V0 |
| Mark | AUO |
| Gréisst | 13.3 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | B133XW04 V0 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 13.3 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 293.42×164.97 mm |
| skizzéieren | 307.6×183.1×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |

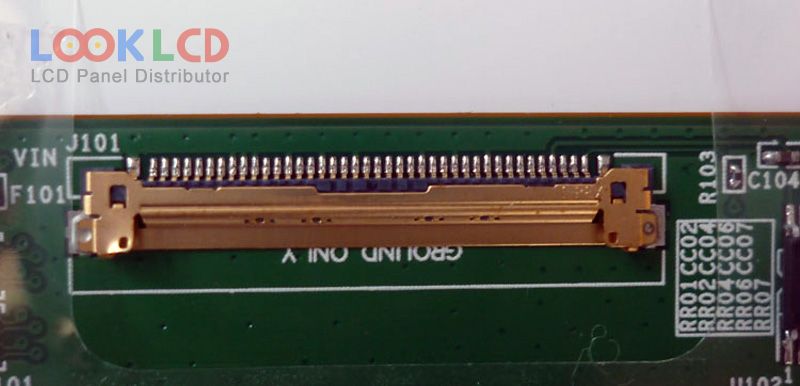

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B133XTN01.0 | AUO | 13.3 | 1366×768 |
| B133XTN01.2 | AUO | 13.3 | 1366×768 |
| B133XTN01.6 HW0A | AUO | 13.3 | 1366×768 |
| B133XTN01.6 HW1A | AUO | 13.3 | 1366×768 |
| B133XTN02.1 | AUO | 13.3 | 1366×768 |
| B133XW01 V2 | AUO | 13.3 | 1366×768 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| B133XW03 V2 | AUO | 13.3 | 1366×768 |
| B133XW03 V3 | AUO | 13.3 | 1366×768 |
| B133XW04 V0 | AUO | 13.3 | 1366×768 |
| B170PW03 V3 | AUO | 17.0 | 1440×900 |
| B170UW01 V0 | AUO | 17.0 | 1920×1200 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| LP141WX1-TLA1 | LG Display | 14.1 | 1280×800 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| LTN140AT21-801 | Samsung | 14.0 | 1366×768 |
| N140O6-L02 | Innolux | 14.0 | 1600×900 |
| NT156FHM-N41 | BOE | 15.6 | 1920×1080 |
