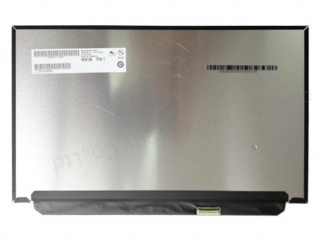

| Part Number | B125HAN03.1 |
| Mark | AUO |
| Gréisst | 12.5 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | AUO |
| diagonal Gréisst | 12.5 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 176PPI |
| aktiv Beräich | 276.48(H)×155.52(V) mm |
| bezel Beräich | - |
| luminance | 400 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.2M 99% sRGB |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Frame Taux | 60Hz |

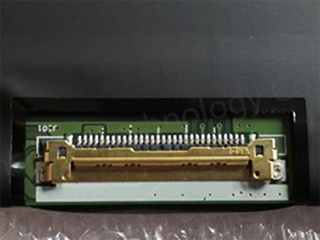

| Interface Typ | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | B125HAN03.1 (AUO316D) |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 282.4(H)×179.32(V) ×2.5(D) mm |
| Behandlung | Glare (Haze 0%) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Äntwert Zäit | 27 (Typ.)(Tr+Td) |
| Betribssystemer Modus | AHVA, Normally Black, Transmissive |
| Liichtquell | WLED , 15K hours , With LED Driver |
| entworf fir | Laptop |
| Touch Panel | Without |
