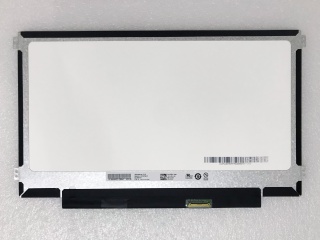

| Part Number | B116XTN02.3 HW2G |
| Mark | AUO |
| Gréisst | 11.6 |
| Applikatioun | Laptop Netbook PC |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | AUO |
| diagonal Gréisst | 11.6 inch |
| Pixel Format | 1366(RGB)×768 [WXGA] 135PPI |
| aktiv Beräich | 256.125(H)×144(V) mm |
| bezel Beräich | - |
| luminance | 220 cd/m² (Typ.) |
| Vue Richtung | 6 o'clock |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K 45% NTSC |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Frame Taux | 60Hz |
| Interface Typ | eDP (2 Lanes) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | B116XTN02.3 HW2G |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 278(H)×168(V) ×3(D) mm |
| Behandlung | Hard coating (3H) |
| Kontrast Verhältnis | 400:1 (Typ.) (TM) |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Liichtquell | WLED , 15K hours , With LED Driver |
| entworf fir | Laptop Netbook PC |
| Touch Panel | Without |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XTN01.0 HW5A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW4A | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
