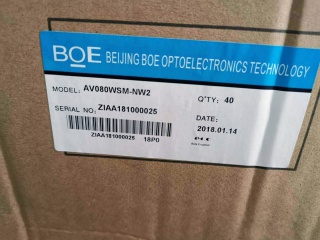

| Part Number | AV080WSM-NW2 |
| Mark | BOE |
| Gréisst | 8.0 |
| Applikatioun | Automotive Display |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 3S10P WLED , 30K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | BOE |
| Modell Numm | AV080WSM-NW2 |
| Écran Gréisst | 8.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1024(RGB)×600 (WSVGA) 148PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 176.64 × 99.36 (H×V) |
| Kontur (mm) | 192.8 × 116.9 × 4.7 (H×V×D) |
| Bezel Beräich (mm) | 180.1 × 103.4 (H×V) |
| Behandlung | - |
| luminance | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Äntwert | 25 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| Faarfdéift | 262K/16.7M 50% NTSC |
| mass | 176/180g (Typ./Max.) |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 6/8-bit) , FPC 40 pins |
| Spannungsversuergung | 3.3/11.5/21/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
