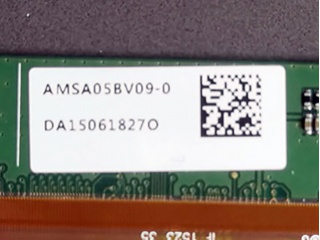

| Part Number | AMSA05BV09 |
| Mark | SAMSUNG |
| Gréisst | 10.5 |
| Applikatioun | Pad & Tablet |
| Opléisung | 2560×1600 |
| Zesummesetzung | AM-OLED, OLED |
| Hellegkeet | |
| CR | 54000:1 |
| Faarwen | 16.7M |
| Géigeliicht | self |
| Interface | MIPI |
| Panel Mark | SAMSUNG |
| Panel Modell | AMSA05BV09 |
| Panel Gréisst | 10.5" |
| Panel Typ | AM-OLED, OLED |
| Resolutioun | 2560(RGB)×1600, 287PPI |
| Pixel Format | S-Stripe RGB |
| Affichage Beräich | 226.56(W)×141.6(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 251.4(W)×171.1(H) mm |
| Uewerfläch | - |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 54000:1 (Min.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥200) |
| Display Modus | - |
| beschte Vue op | Symmetry |
| Äntwert Zäit | - |
| weisen Faarwen | 16.7M 100% NTSC |
| Lampe Typ | self |
| Frequenz | 60Hz |
| Touchscreens | PCAP |
| Chauffeur ic | COG Built-in EA8002ASA |
| Panel Gewiicht | 143/148g (Typ./Max.) |
| Applikatioun | Pad & Tablet |
| Signal Interface | MIPI (2 ch, 4 data lanes) , 80 pins Connector |
| Input Volt | 1.8/3.3/3.8V (Typ.)(VDD1/VDD3/VBAT) |
| Ëmwelt | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
