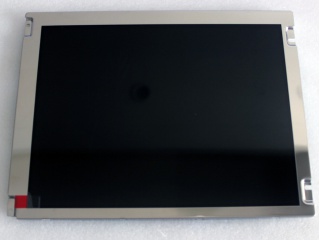

| Part Number | AM-800600K2TMQW-04H |
| Mark | AMPIRE |
| Gréisst | 10.4 |
| Applikatioun | Industrial |
| Opléisung | 800×600 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AMPIRE |
| Panel Gréisst | 10.4" |
| Resolutioun | 800(RGB)×600, SVGA, 96PPI |
| Affichage Beräich | 211.2(W)×158.4(H) mm |
| Kontur Gréisst | 243(W)×185.6(H) mm |
| Hellegkeet | 500 cd/m² (Typ.) |
| Vue Wénkel | 70/70/50/60 (Typ.)(CR≥10) |
| beschte Vue op | 6 o'clock |
| weisen Faarwen | 262K 50% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | - |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -35 ~ 85 °C |
| Panel Modell | AM-800600K2TMQW-04H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 214.8(W)×162.7(H) mm |
| Uewerfläch | - |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 5/15 (Typ.)(Tr/Td) |
| Lampe Typ | WLED , 30K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
