AMPIRE AM-1280800J4TZQW-T00 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

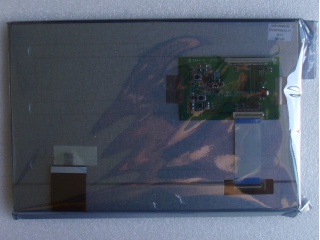

AM-1280800J4TZQW-T00

AM-1280800J4TZQW-T00
AM-1280800J4TZQW-T00 thumb
Mark
AMPIRE
Gréisst
10.1
Applikatioun
Industrial
Opléisung
1280×800
Zesummesetzung
a-Si TFT-LCD, LCM
Hellegkeet
CR
800:1
Faarwen
16.7M
Backlight
WLED
Interface
LVDS
In Stock
8055
Spezifikatioune

Part Number AM-1280800J4TZQW-T00
MarkAMPIRE
Gréisst10.1
ApplikatiounIndustrial
Opléisung1280×800
Zesummesetzunga-Si TFT-LCD, LCM
Hellegkeet
CR800:1
Faarwen16.7M
GéigeliichtWLED
InterfaceLVDS
MarkAMPIRE
ModellAM-1280800J4TZQW-T00
diagonal Gréisst10.1 inch
Typa-Si TFT-LCD, LCM
Pixel Format1280(RGB)×800  [WXGA]  149PPI
ConfiguratiounRGB Vertical Stripe
aktiv Beräich216.96(H)×135.6(V) mm
kontur dim.231(H)×150(V) ×8.8(D) mm
luminance300 cd/m² (Typ.)
Kontrast Verhältnis800:1 (Typ.) (TM)
Vue RichtungSymmetry
Äntwert Zäit10/15 (Typ.)(Tr/Td)
Vue Wénkel85/85/85/85 (Typ.)(CR≥10)
Betribssystemer ModusNormally Black, Transmissive
Ënnerstëtzung Faarf16.7M
LiichtquellWLED  [3S11P] , 15K hours , With LED Driver
GewiichtTBD
entworf firIndustrial
Frame Taux60Hz
Touch PanelPCAP
Interface TypLVDS (1 ch, 8-bit) , 30 pins Connector
Stroumversuergung3.3V (Typ.)
ËmweltOperating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Famill Modell
AM-1280800N1TZQW-T06H AMPIRE 10.1 1280×800
AM-1280800N2TZQW-00H AMPIRE 10.1 1280×800
AM-1280800N2TZQW-T48H AMPIRE 10.1 1280×800
B101XTN01.1 AUO 10.1 1366×768
BP101WX1-200 BOE 10.1 1280×800
HSD100IFW4-A00 HannStar 10.1 1024×600
HSD101PFW4-A00 HannStar 10.1 1024×600
LP101WH1-TLB2 LG Display 10.1 1366×768
LP101WH4-SLAB LG Display 10.1 1366×768
TV101QUM-N00 BOE 10.1 3840×2160
