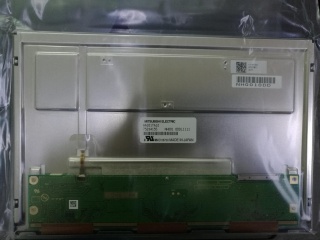

| Part Number | AA101TA12 |
| Mark | Mitsubishi |
| Gréisst | 10.1 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1280×800 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 2 |
| Interface | LVDS |
| Panel Mark | Mitsubishi |
| Panel Gréisst | 10.1" |
| Resolutioun | 1280(RGB)×800, WXGA, 149PPI |
| Affichage Beräich | 216.96(W)×135.6(H) mm |
| Kontur Gréisst | 231(W)×153.5(H) ×9(D) mm |
| Hellegkeet | 800 cd/m² (Typ.) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 262K/16.7M 50% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | 310g |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| Panel Modell | AA101TA12 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 220.96(W)×139.6(H) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | SWV, Normally Black, Transmissive |
| Äntwert Zäit | 12/12 (Typ.)(Tr/Td) |
| Lampe Typ | 2 strings WLED , 100K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial Outdoor High Brightness |
