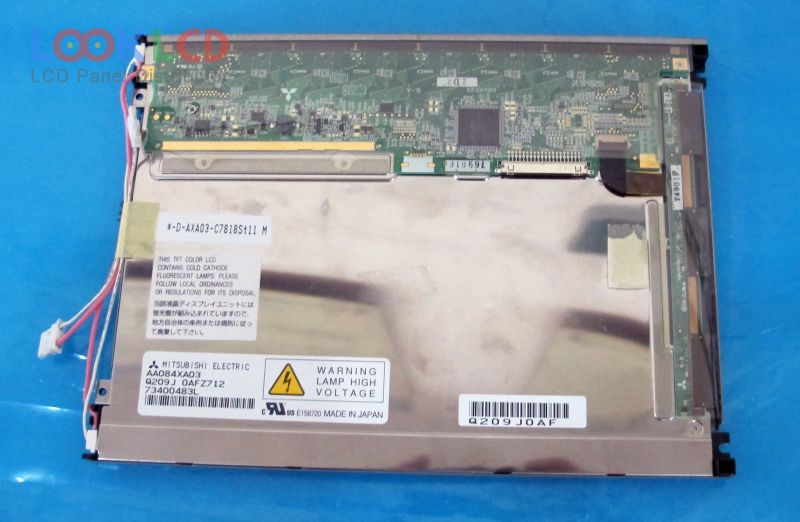

| Part Number | AA084XA03 |
| Mark | Mitsubishi |
| Gréisst | 8.4 |
| Applikatioun | IA |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 400:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | Mitsubishi |
| Panel Modell | AA084XA03 2 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 171.264×128.448 mm |
| skizzéieren | 205×152.4 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Äntwert Zäit | 6/19 (Typ.)(Tr/Td) |
| Vue Wénkel | 65/65/60/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
